Schematic Diagram

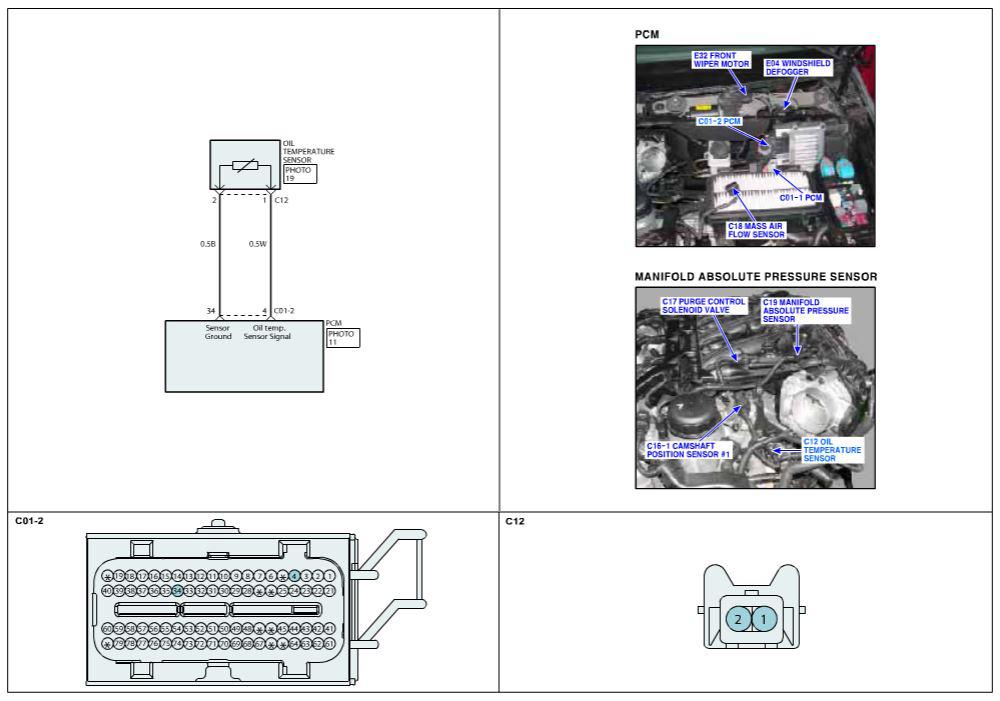

Fig 1: Engine Oil Temp.Sensor Low Input - Schematic Diagram

G06836505

Courtesy of KIA MOTORS AMERICA, INC.
