Component Location

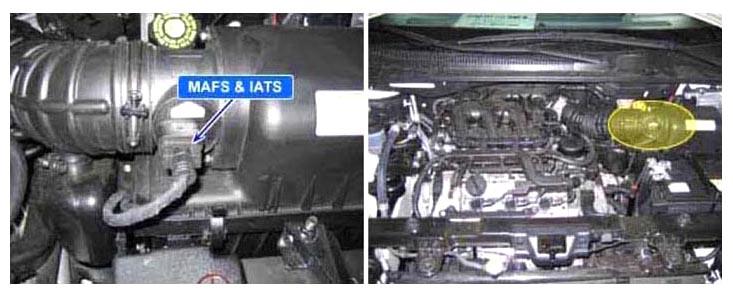

Fig 1: Identifying MAFS And IATS Location
G06836262Courtesy of KIA MOTORS AMERICA, INC.
