Components and Components Location: Components

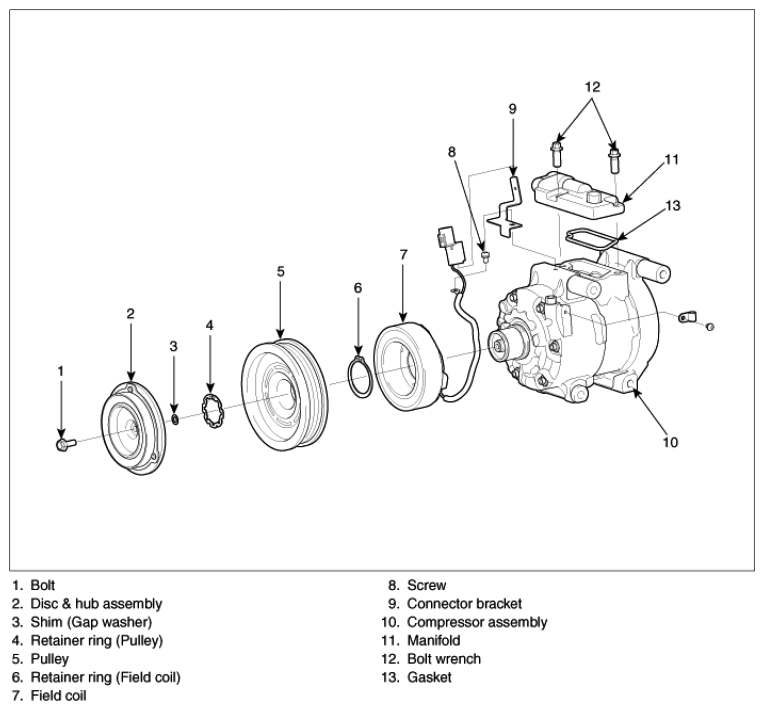

Fig 1: Exploded View Of Air Conditioning System

G06829809

Courtesy of KIA MOTORS AMERICA, INC.
