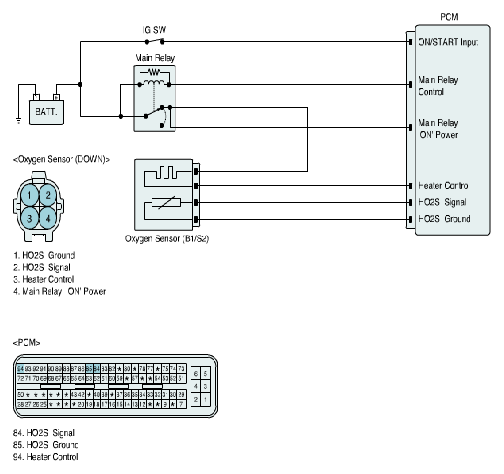

Home >> Kia >> 2010 >> Optima EX, 2.4 8 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) - 2.4L >> DTC P0136: O2 Sensor Circuit (Bank 1/Sensor 2) >> General Information >> Diagnostic Circuit Diagram
