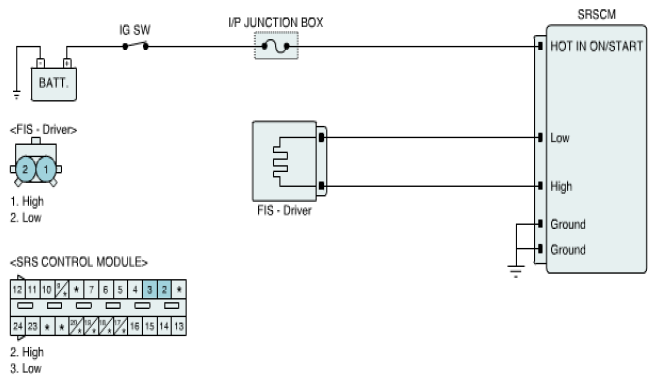

Home >> Kia >> 2010 >> Forte EX, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Restraints DTC Diagnosis >> DTC B1328: FIS (Front Impact Sensor)-Driver Defect >> General Information >> Diagnostic Circuit Diagram
