Components and Component Locations: Components

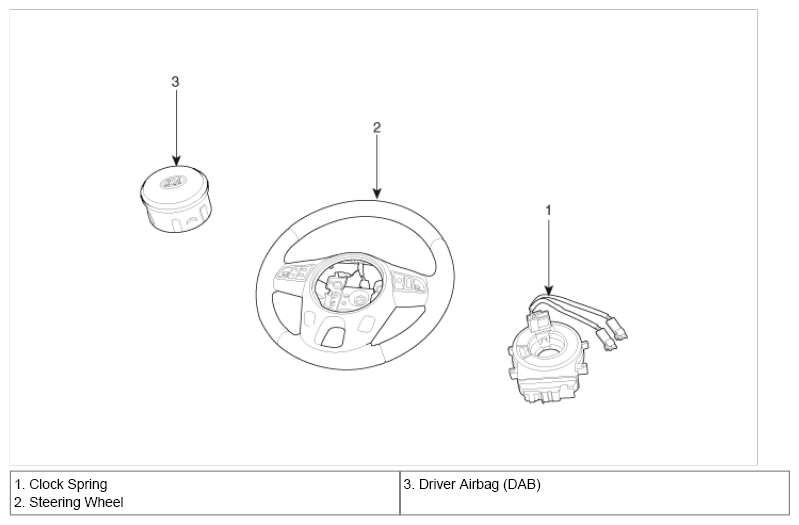

Fig 1: Identifying Driver Airbag (DAB) Module, Clock Spring, & Steering Wheel

G06494726

Courtesy of KIA MOTORS AMERICA, INC.
