Component Inspection

  1. Check MAPS performance.
    1. IG "OFF".
    2. Connect CH A probe to signal terminal of TPS and CH B probe to signal terminal of MAPS connector.
    3. Warm up the engine to normal operating temperature.
    4. Measure signal waveform of MAPS and TPS together by stepping on and off the accelerator pedal.

      Specification:

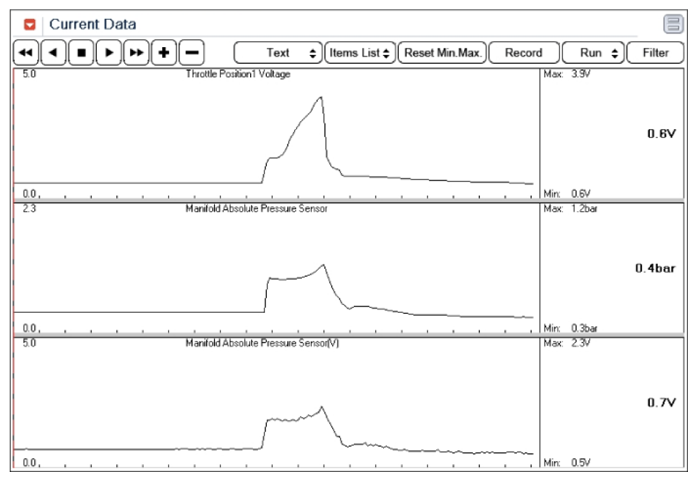

      Fig 1: Measuring Signal Waveform Of MAPS & TPS Together
      G06490703Courtesy of KIA MOTORS AMERICA, INC.
    5. Is the measured signal waveform (Comparison response of TPS with MAPS) OK?

      YES

      • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO

      • Substitute with a known - good MAPS and check for proper operation.

        If the problem is corrected, replace MAPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
