Circuit Diagram

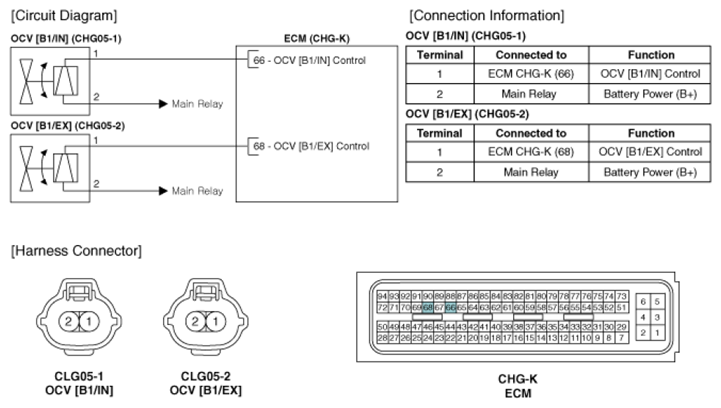

Fig 1: CVVT Oil Control Valve - Circuit Diagram

G06494338

Courtesy of KIA MOTORS AMERICA, INC.
