External Receiver (SRX)

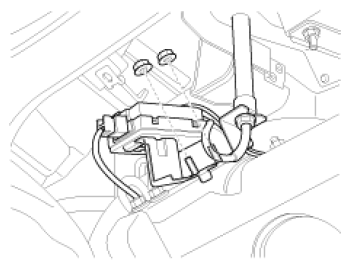

Fig 1: Identifying External Receiver (SRX)
G06496484Courtesy of KIA MOTORS AMERICA, INC.

The data transmitted by the RKE or Smart key Fob is received by an external RF receiver called as SRX. This receiver will be same as that one for the SMK applications, with respect to electronics, housing, connector and software.

This receiver is connected to the SMK via a serial communication line.
