Automatic Transaxle System - A4CF2
>>
Automatic Transaxle
>>
Components and Component Locations (A4CF2)
>>
Components (1)
Components (1)

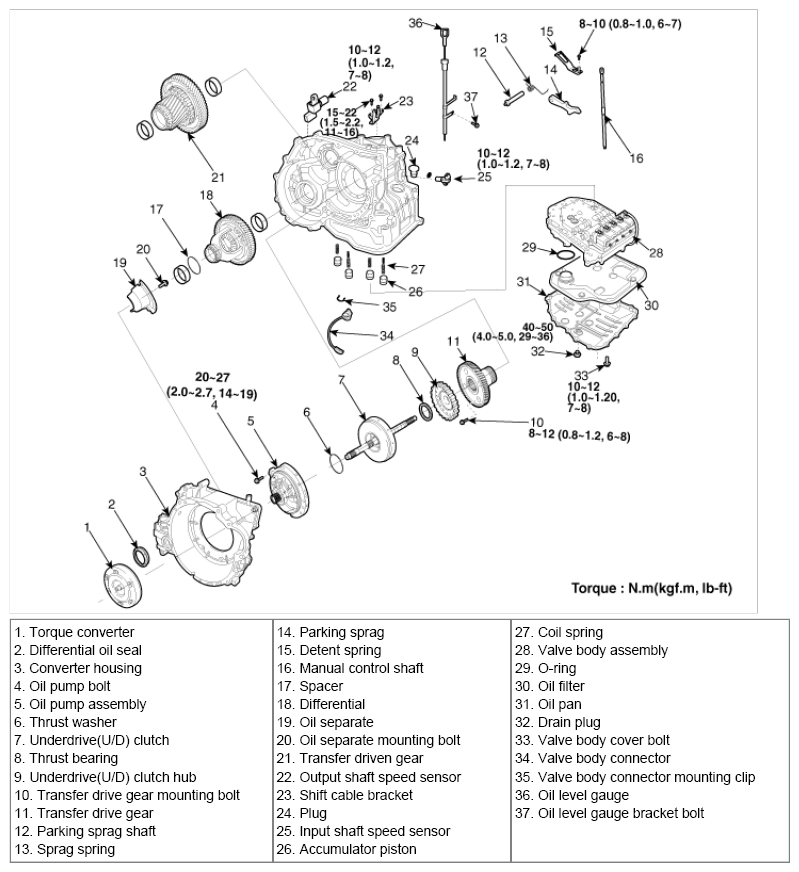

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
