Front Wheel Speed Sensor

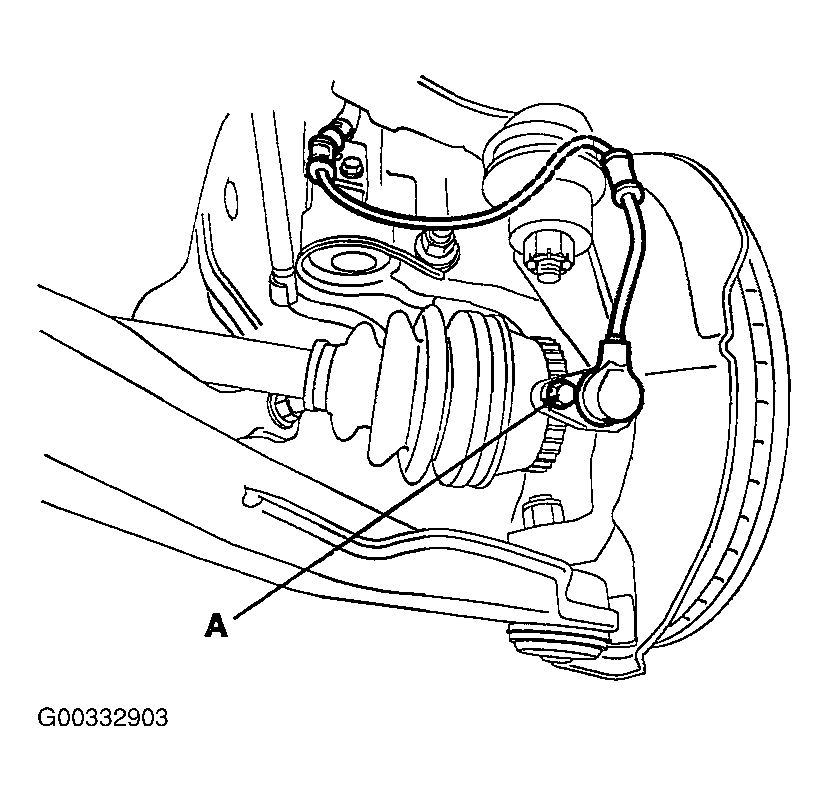

Remove the front wheel speed sensor mounting bolt (A).

Fig 1: Removing The Front Wheel Speed Sensor Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

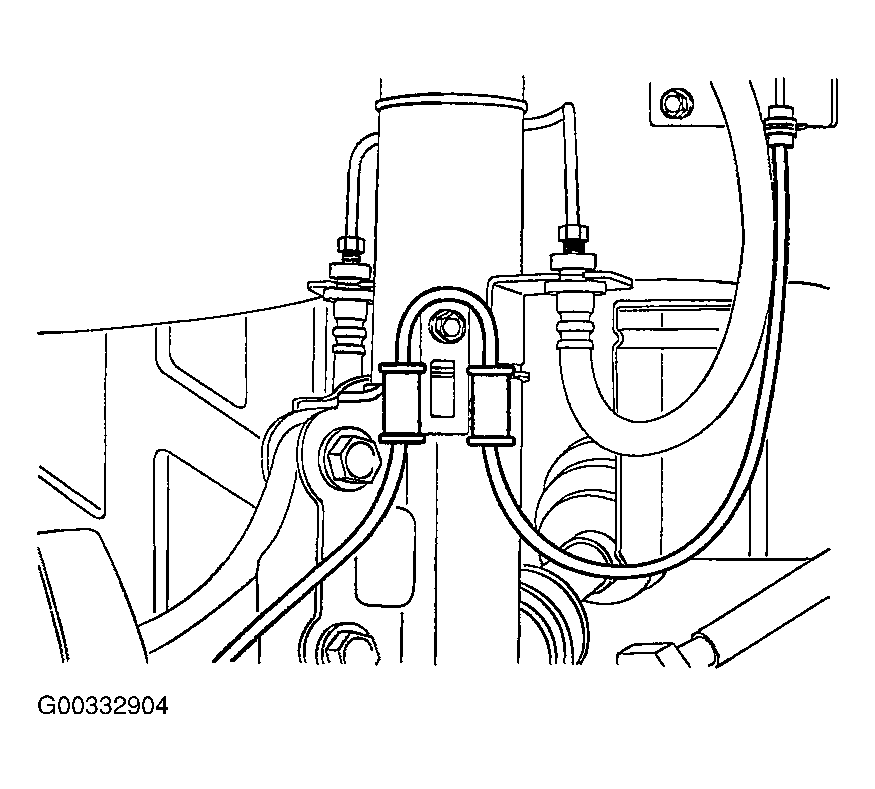

Remove the mounting bolt fixed on the strut.

Fig 2: Removing The Mounting Bolt Fixed On The Strut
Courtesy of KIA MOTORS AMERICA, INC.

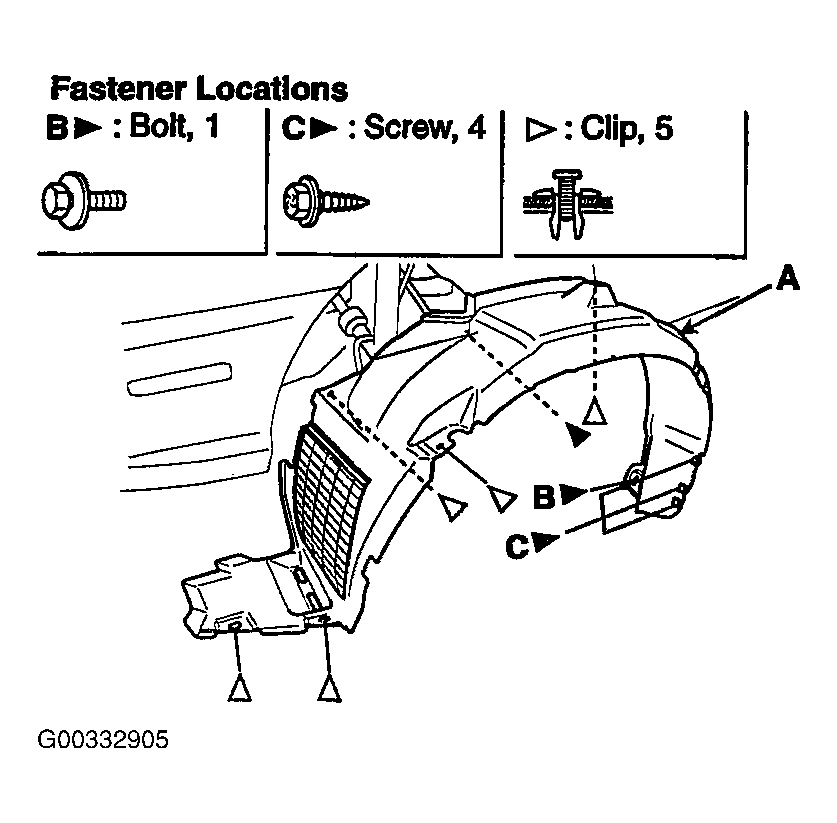

Remove the front wheel guard (A).

Fig 3: Removing The Front Wheel Guard
Courtesy of KIA MOTORS AMERICA, INC.

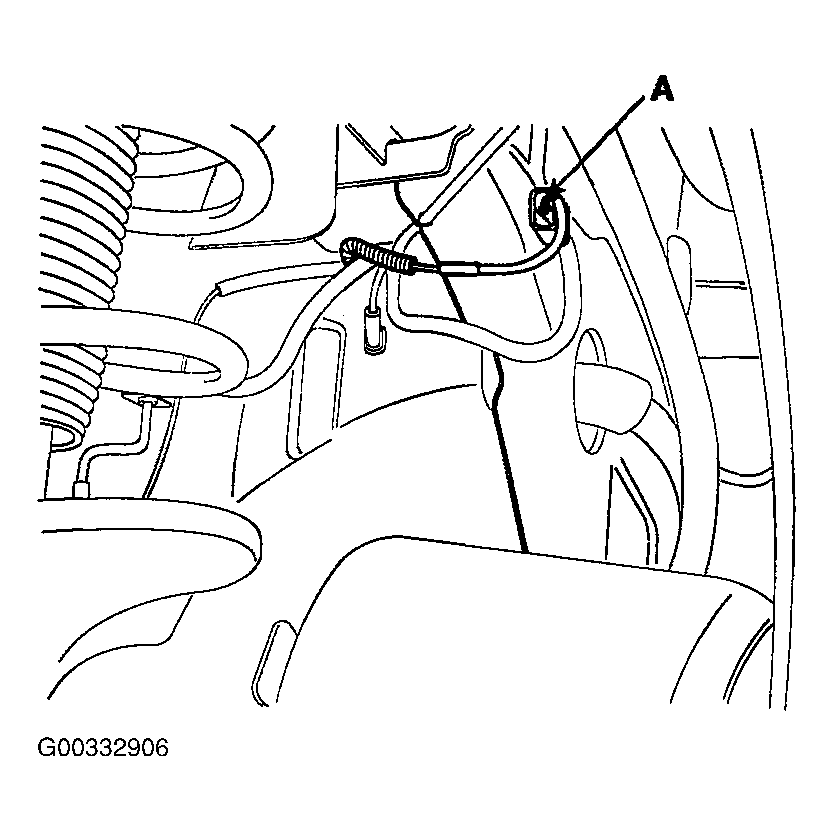

Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

Fig 4: Disconnecting & Removing Front Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
