Home >> Kia >> 2009 >> Spectra5 2.0 2, Standard >> Repair and Diagnosis >> Brakes >> Abs/TCS (Anti Lock/Traction Control) >> Circuit Diagram

Circuit Diagram

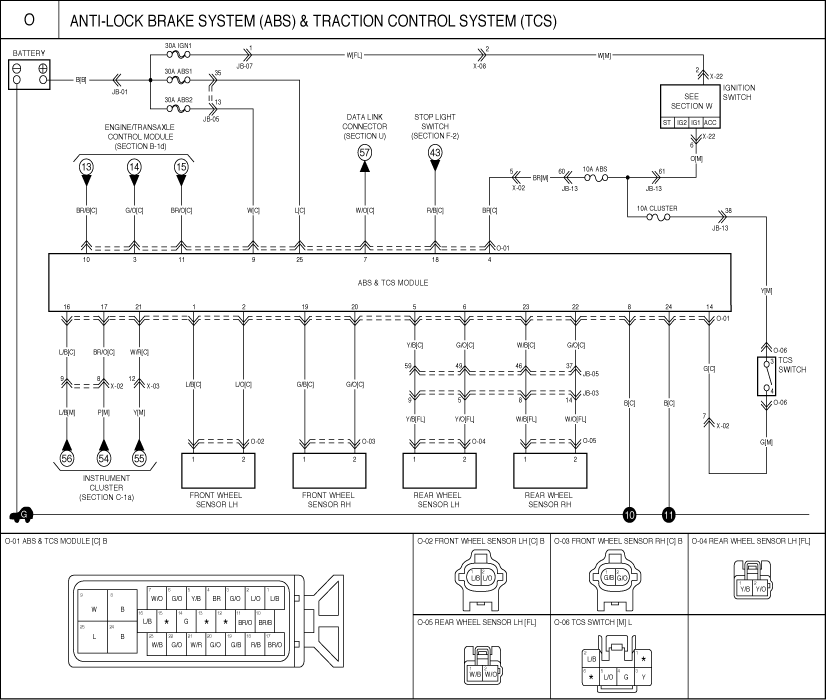

Fig 1: Circuit Diagram

G00488894

Courtesy of KIA MOTORS AMERICA, INC.
