HECU Connector Input/Output Specification (Abs & TCS)

Fig 1: HECU Connector Pinout

G00332813

Courtesy of KIA MOTORS AMERICA, INC.

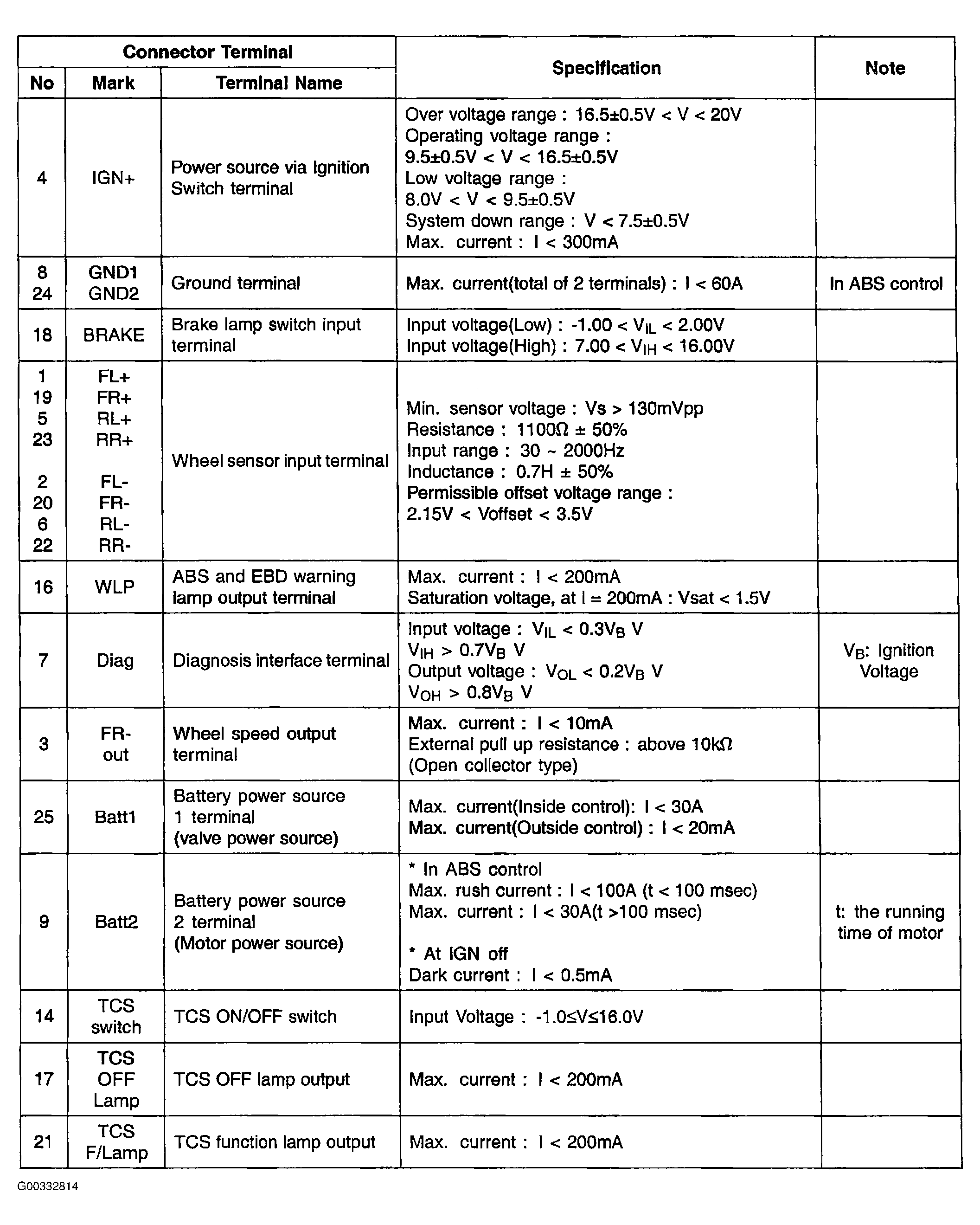

Fig 2: HECU Terminal Specifications

G00332814

Courtesy of KIA MOTORS AMERICA, INC.
