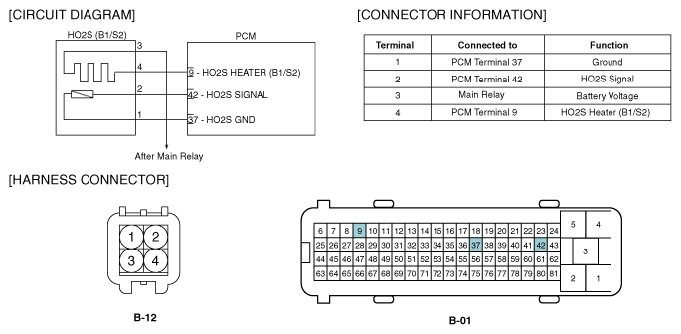

Home >> Kia >> 2009 >> Spectra EX, 2.0 1, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (1 Of 2) >> P0036: Ho2S Heater Control Circuit (Bank1/Sensor2) >> Schematic Diagram
