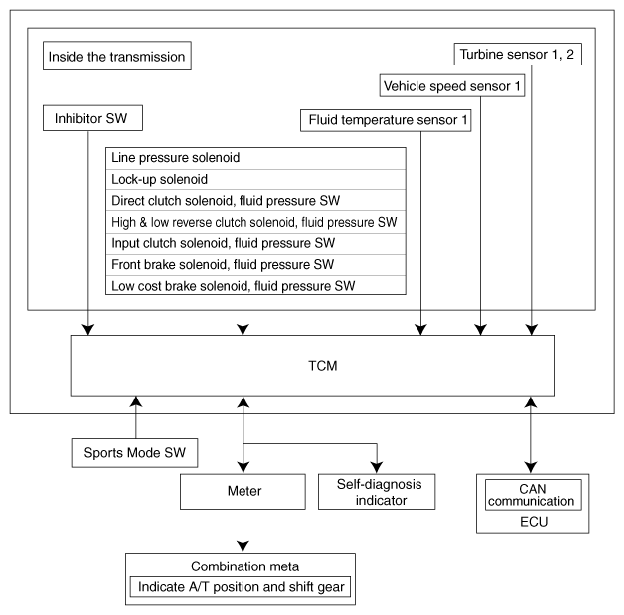

Control System Diagram
MAIN COMMUNICATION SIGNAL
MAIN COMMUNICATION SIGNAL CHART
| Input to ECM (CAN) | Output to ECM (CAN) | Input from external sys. | Output to external sys. |
| - | - | A/T driving mode SW | Self-diagnosis indicator |
| Engine torque signal | Output revolution signal | Sports mode SW | Range signal (P, R, N, D) |
| Engine revolution signal | Turbine sensor signal | Up SW | Range signal |
| - | Torque reduction request signal | Down SW | Reverse lamp signal |
| Accelerator opening signal | Stop lamp SW | ||
| 4 x 4 Low signal |
LINE PRESSURE CONTROL
- If the engine control unit sends the input torque signal equivalent to the engine driving force to the A/T control unit (TCM), the A/T control unit (TCM) controls line pressure solenoid.
- This line pressure solenoid controls the pressure regulator valve as the signal pressure and adjusts the pressure of the operating oil discharged from the oil pump to the line pressure most appropriate to the driving plate.
