Sorento Base, A5SR2
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures (3 Of 3)
>>
P2197: O2 Sensor Signal Stuck Lean (Bank 2 Sensor 1)
>>
Schematic Diagram
Schematic Diagram

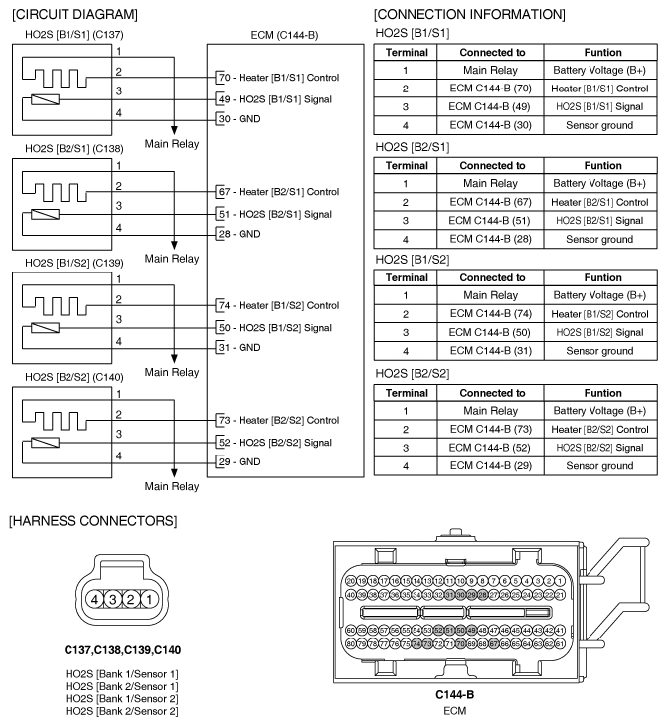

Fig 1: O2 Sensor Signal Stuck Lean (Bank 2 Sensor 1) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
