Monitor Scan Tool Data

  1. Check DTC Status
    1. Connect scan tool to Data Link Connector (DLC).
    2. IG "ON".
    3. Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F5(INFO) to check DTC's information from the DTCs menu
    4. Read "DTC Status" parameter.

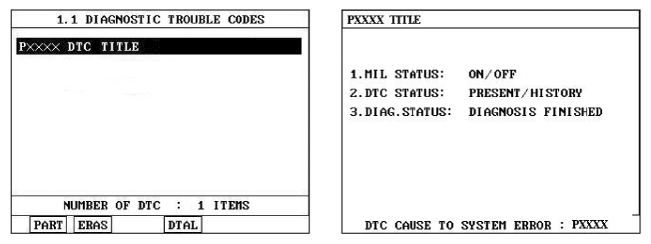

      Fig 1: Screen Display - DTC Title
      G06411865Courtesy of KIA MOTORS AMERICA, INC.
    5. Is "Present" Fault displayed?

      YES

      • Substitute with a known-good Catalyst Converter and check for proper operation. If the problem is corrected, Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
