Monitor DTC Status

Check DTC Status
1. Connect scan tool to Data Link Connector (DLC).
2. IG "ON".
3. Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F5(INFO) to check DTC's information from the DTCs menu.
4. Read "DTC Status" parameter.

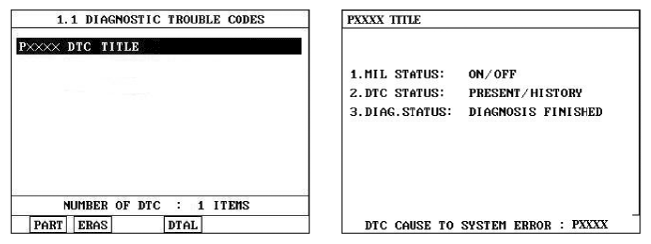

  Fig 1: Screen Display - DTC Status
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is "Present" Fault displayed?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Fault is intermittent caused by ECM memory was not cleared after repair. Erase DTC and drive the vehicle to satisfy the enable condition then, go to "COMPONENT INSPECTION " procedure.
