Schematic Diagram

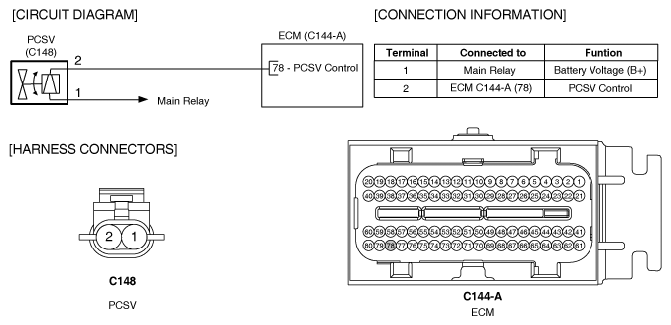

Fig 1: Purge Control Solenoid Valve (PCSV) Schematic Diagram

G06408089

Courtesy of KIA MOTORS AMERICA, INC.
