Standard Flow Of Diagnostic Troubleshooting: Notes

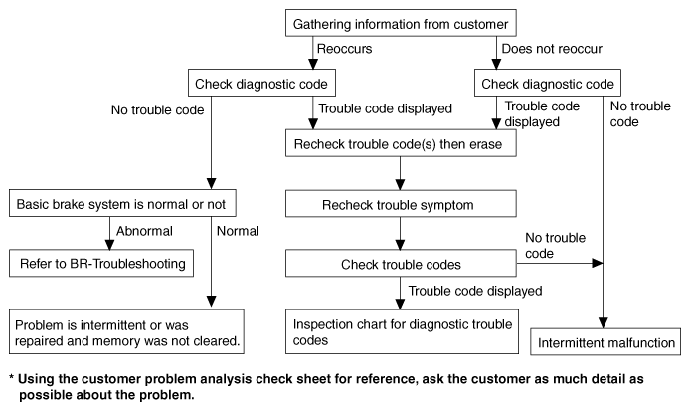

Fig 1: Diagnostic Troubleshooting Flow Chart

G06410186

Courtesy of KIA MOTORS AMERICA, INC.
