Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "RED SOL. VALVE" parameter on the scan tool.
  4. Shift gear at each position.

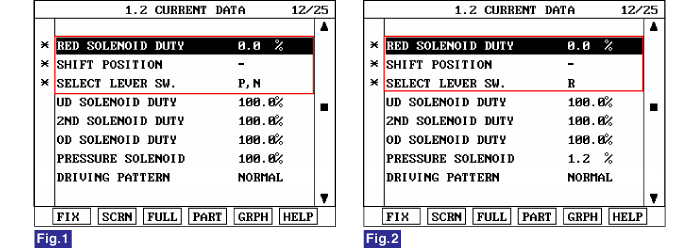

    Fig 1: Scan Tool Display - RED Solenoid Duty (Fig. 1 & Fig. 2)
    G00489056Courtesy of KIA MOTORS AMERICA INC.
    Fig 2: Scan Tool Display - RED Solenoid Duty (Fig. 3 & Fig. 4)
    G00489057Courtesy of KIA MOTORS AMERICA INC.

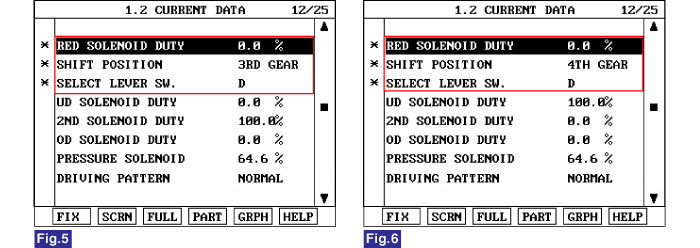

    Fig 3: Scan Tool Display - RED Solenoid Duty (Fig. 5 & Fig. 6)
    G00489058Courtesy of KIA MOTORS AMERICA INC.
    Fig 4: Scan Tool Display - RED Solenoid Duty (Fig. 7)
    G00489059Courtesy of KIA MOTORS AMERICA INC.

    5. FIG 1) P,N

    FIG 2) "R"

    FIG 3) "D 1st" gear

    FIG 4) "2nd" gear

    FIG 5) "3rd" gear

    FIG 6) "4th" gear

    FIG 7) "5th" gear

  5. Does "RED SOLENOID DUTY" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
