Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "OD SOL. VALVE" parameter on the scan tool.
  4. Shift gear at each position.

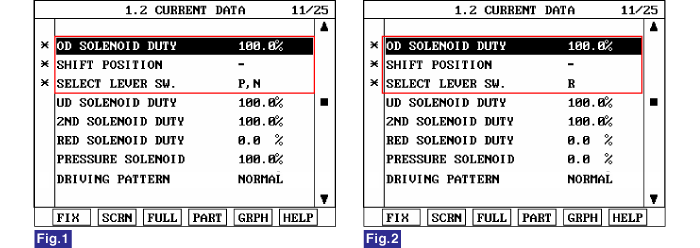

    Fig 1: Scan Tool Display - OD Solenoid Duty (Fig. 1 & Fig. 2)
    G00488794Courtesy of KIA MOTORS AMERICA INC.
    Fig 2: Scan Tool Display - OD Solenoid Duty (Fig. 3 & Fig. 4)
    G00489053Courtesy of KIA MOTORS AMERICA INC.

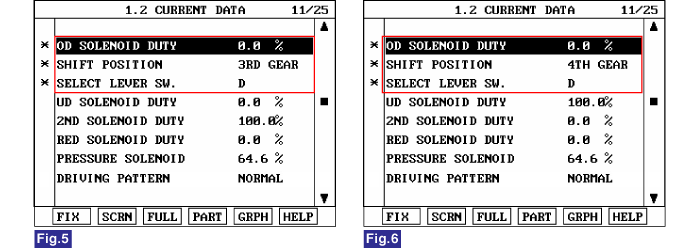

    Fig 3: Scan Tool Display - OD Solenoid Duty (Fig. 5 & Fig. 6)
    G00489054Courtesy of KIA MOTORS AMERICA INC.
    Fig 4: Scan Tool Display - OD Solenoid Duty (Fig. 7)
    G00489055Courtesy of KIA MOTORS AMERICA INC.

    5. FIG 1) P,N

    FIG 2) "R"

    FIG 3) "D 1st" gear

    FIG 4) "2nd" gear

    FIG 5) "3rd" gear

    FIG 6) "4th" gear

    FIG 7) "5th" gear

  5. Does "OD SOLENOID DUTY" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
