Monitor Scan Tool Data

1. Connect scan tool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "UD SOL. VALVE" parameter on the scan tool.
4. Shift gear at each position.

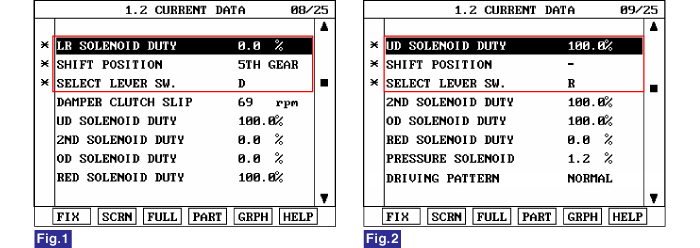

   Fig 1: Scan Tool Display - UD Solenoid Duty (Fig. 1 & Fig. 2)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Scan Tool Display - UD Solenoid Duty (Fig. 3 & Fig. 4)

   Courtesy of KIA MOTORS AMERICA, INC.

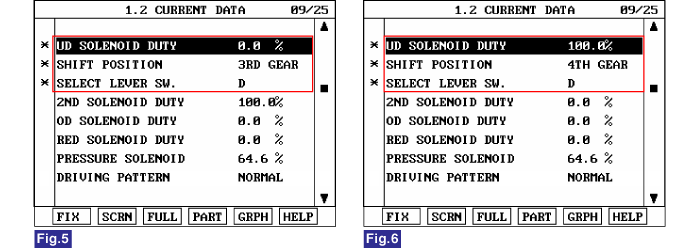

   Fig 3: Scan Tool Display - UD Solenoid Duty (Fig. 5 & Fig. 6)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Scan Tool Display - UD Solenoid Duty (Fig. 7)

   Courtesy of KIA MOTORS AMERICA, INC.

   FIG 1) P,N

   FIG 2) "R"

   FIG 3) "D 1st" gear

   FIG 4) "2nd" gear

   FIG 5) "3rd" gear

   FIG 6) "4th" gear

   FIG 7) "5th" gear

5. Does "UD SOLENOID DUTY" follow the reference data?

YES

• Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

• Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
