Component Location

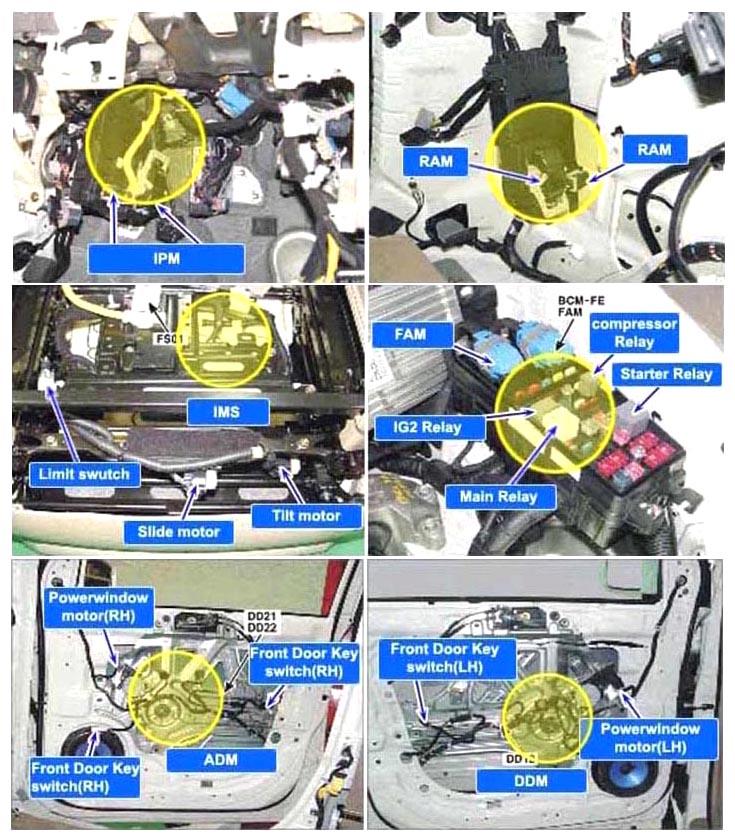

Fig 1: Identifying CAN BUS Components Location (1 Of 2)
G06835928Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying CAN BUS Components Location (2 Of 2)
G06835929Courtesy of KIA MOTORS AMERICA, INC.
