Schematic Diagram

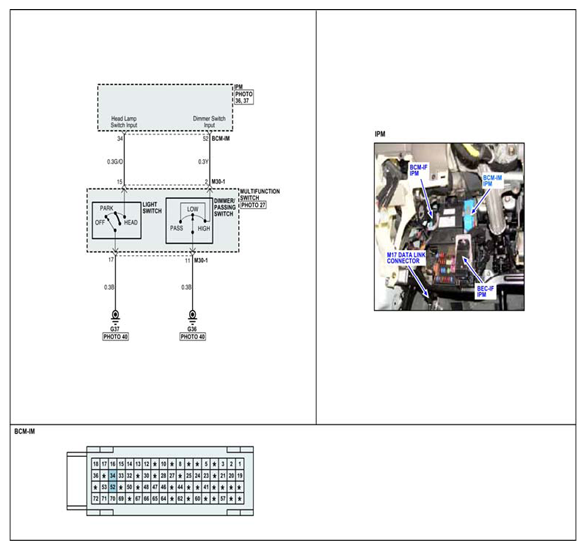

Fig 1: Light MF Switch Error - Schematic Diagram

G06835922

Courtesy of KIA MOTORS AMERICA, INC.
