Components (1)

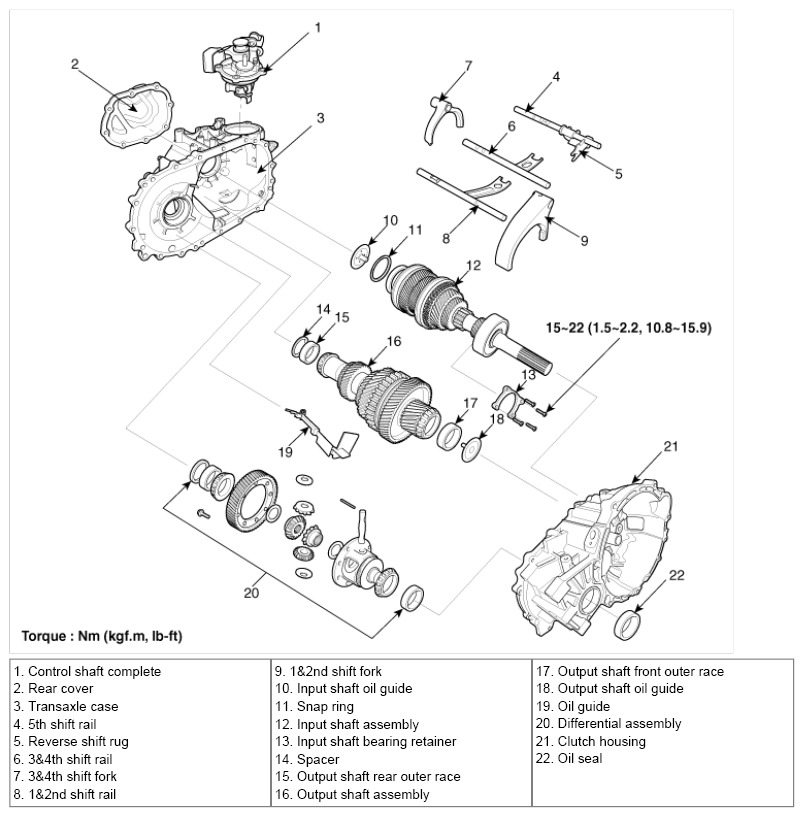

Fig 1: Exploded View Of Manual Transaxle (1 Of 2)

G06405628

Courtesy of KIA MOTORS AMERICA, INC.
