AM/FM/CD (M445) Connector End Views
AM/FM/CD (M445) Connector End Views

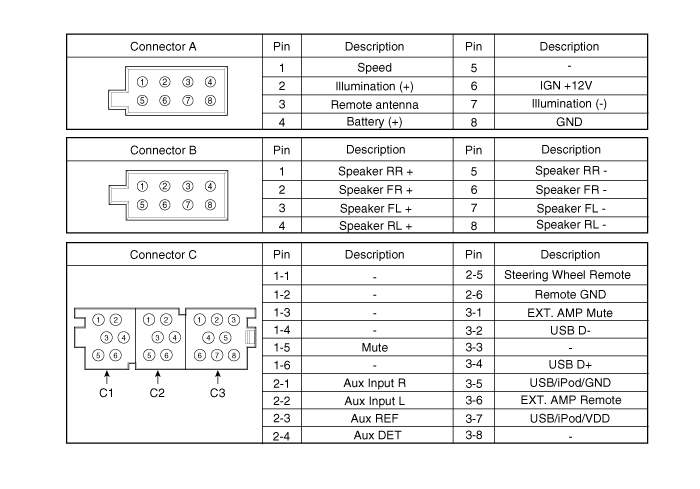

Fig 1: AM/FM/CD (M445) Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
