Blower Resistor: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the blower resistor connector (A) at the connecting part blower unit.
  3. Remove the blower resistor after loosening the mounting screws.

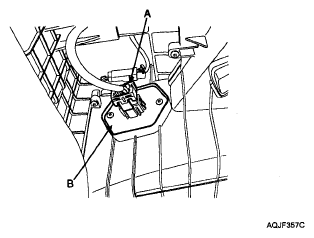

    Fig 1: Identifying Blower Resistor Connector And Blower Unit
    G04863910Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
