DTC Troubleshooting Procedures (1 Of 2)
>>
DTC P0130 Ho2S Circuit (Bank 1/Sensor 1)
>>
Signal Waveform & Data
Signal Waveform & Data

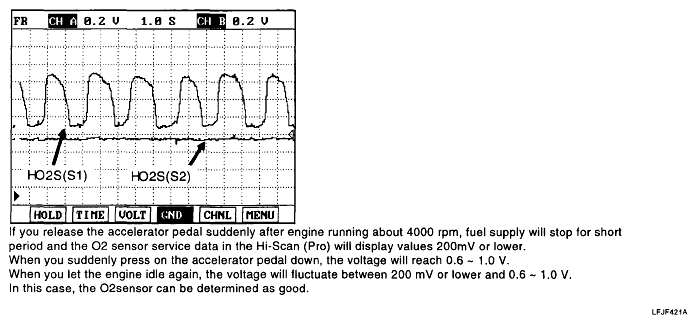

Fig 1: Scan Tool Display - Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
