4TH Gear ("D" Range)

Operating elements: Front Clutch, Rear Clutch, End Clutch

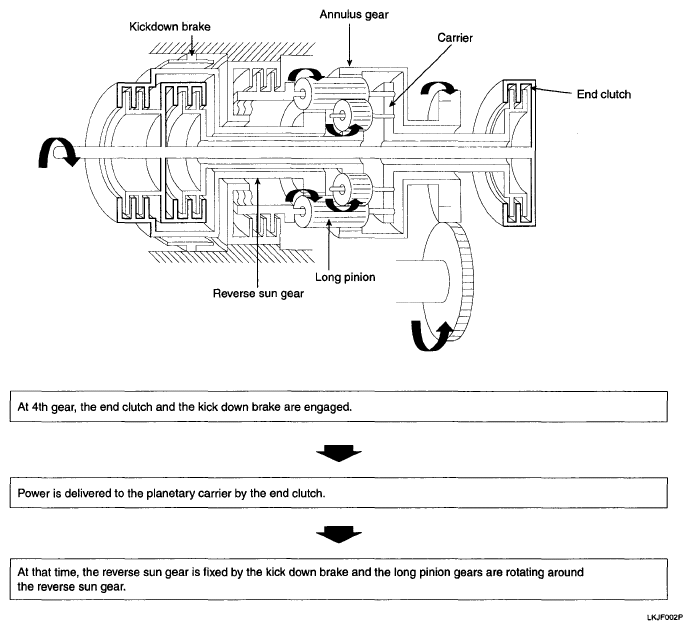

Fig 1: 4th Gear - "D" Range - Front Clutch, Rear Clutch End Clutch Operation

G04862502

Courtesy of KIA MOTORS AMERICA, INC.
