Circuit Diagram (1)

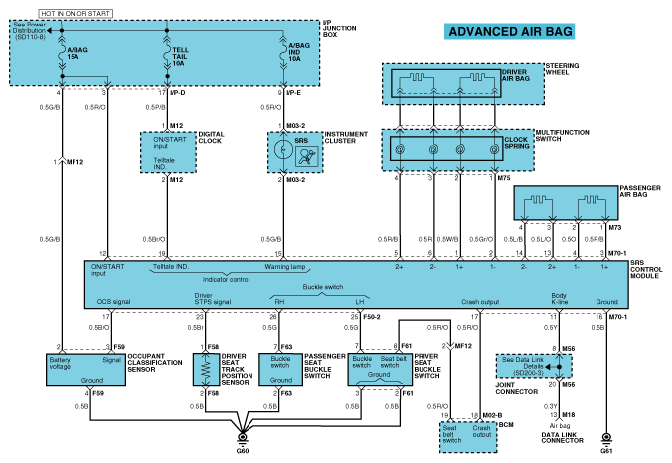

Fig 1: Advanced Air Bag - Circuit Diagram (1 Of 2)

G06366731

Courtesy of KIA MOTORS AMERICA, INC.

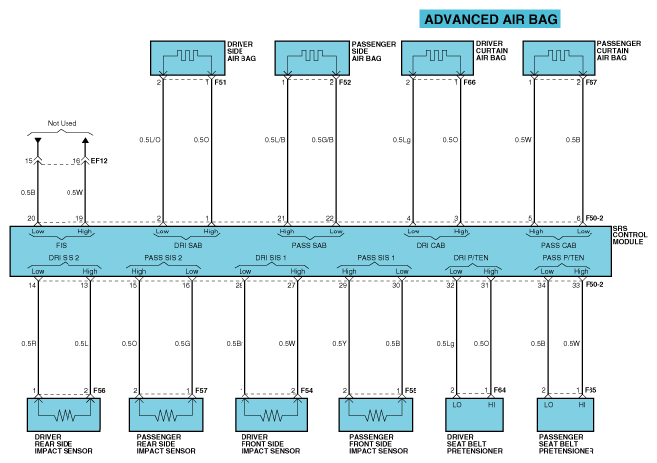

Fig 2: Advanced Air Bag - Circuit Diagram (2 Of 2)

G06366732

Courtesy of KIA MOTORS AMERICA, INC.
