Components and Components Location: Components

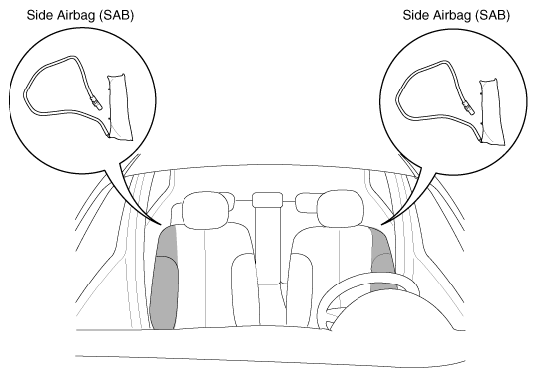

Fig 1: Identifying Side Airbag

G06366747

Courtesy of KIA MOTORS AMERICA, INC.
