Monitor Scan Tool Data

  1. Check status
    1. IGN "ON" & Engine "OFF"
    2. Monitor the "ECM, Key and Smartra Status" Parameter on the scan tool.

      Specification:  'LEARNT'

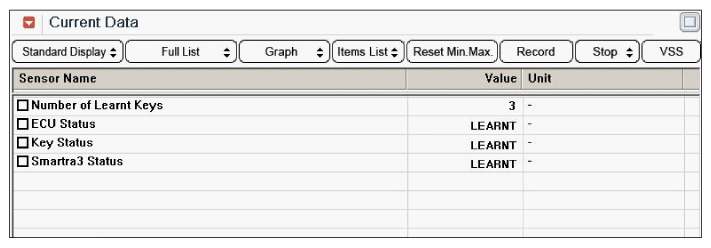

      Fig 1: Screen Display - Current Data
      G06416631Courtesy of KIA MOTORS AMERICA, INC.
    3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA. And This DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
