Circuit Diagram

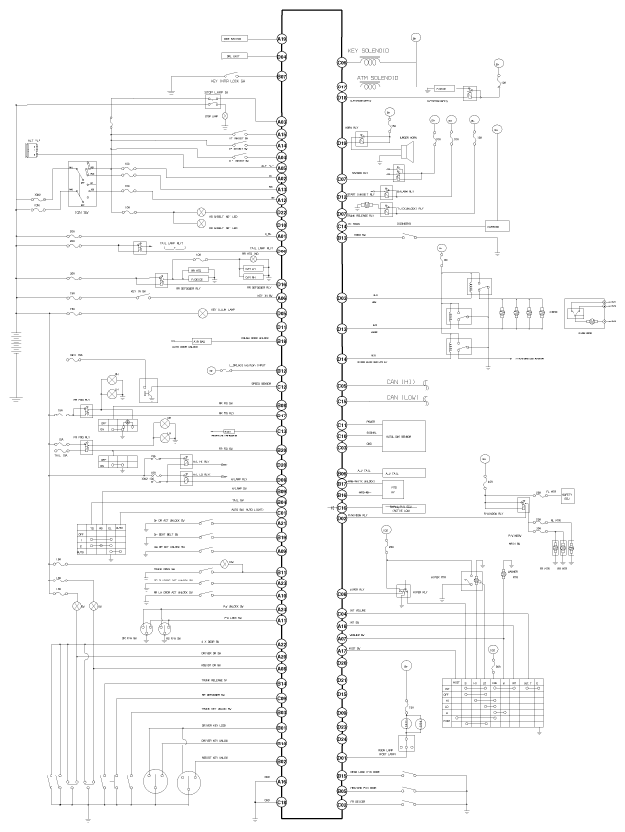

Fig 1: Body Control Module Circuit Diagram

G06367255

Courtesy of KIA MOTORS AMERICA, INC.
