Circuit Diagram (3)

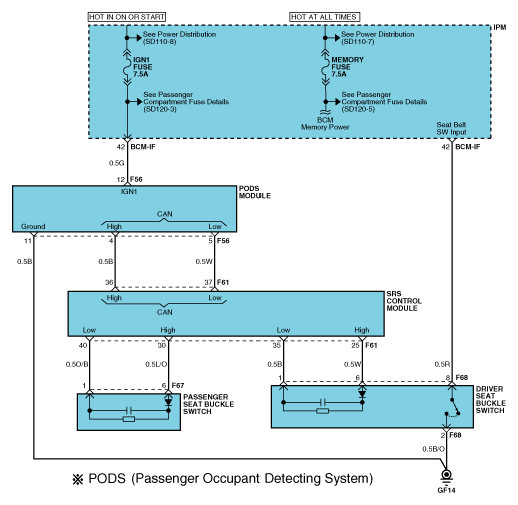

Fig 1: SRS Control Module Circuit Diagram (3)

G06368130

Courtesy of KIA MOTORS AMERICA, INC.
