Circuit Diagram (2)

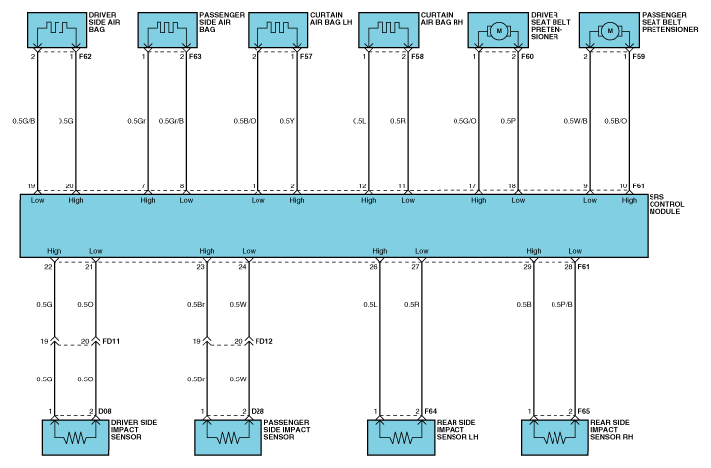

Fig 1: SRS Control Module Circuit Diagram (2)

G06368129

Courtesy of KIA MOTORS AMERICA, INC.
