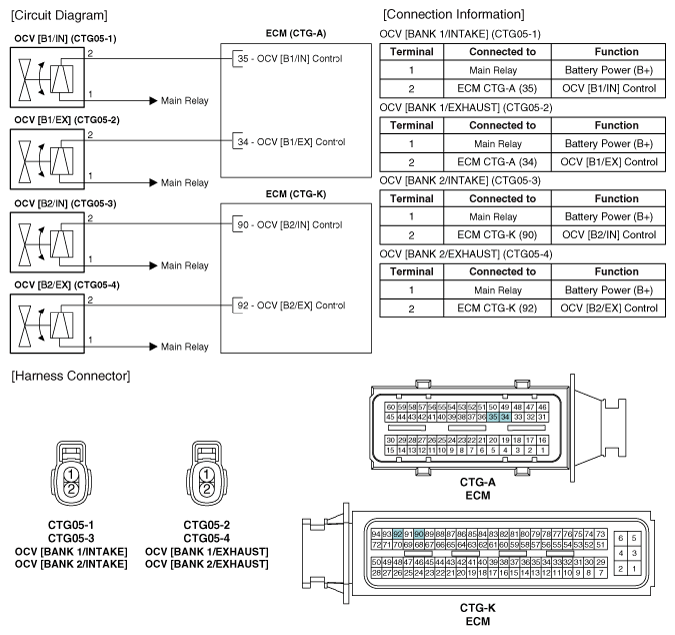

Home >> Kia >> 2009 >> Borrego Limited, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 4.6L >> CVVT Oil Control Valve (OCV) >> Schematic Diagrams >> Circuit Diagram
