Diagnostic Circuit Diagram

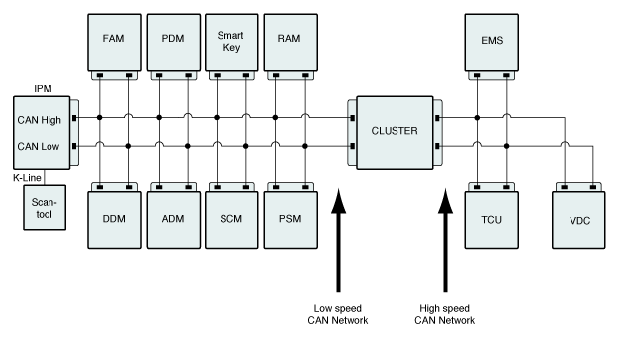

Fig 1: Cluster Diagnostic Circuit Diagram
G06365617Courtesy of KIA MOTORS AMERICA, INC.

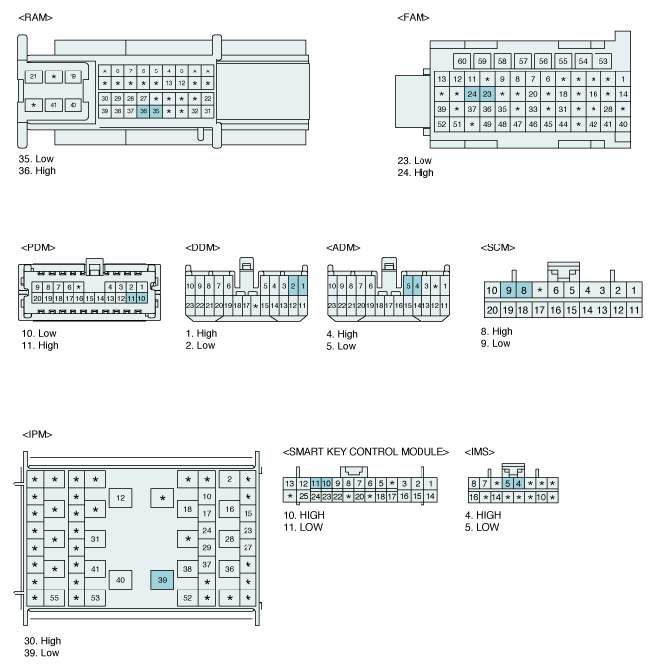

Fig 2: Identifying Control Module Connectors & Terminals (1 Of 2)
G06365618Courtesy of KIA MOTORS AMERICA, INC.

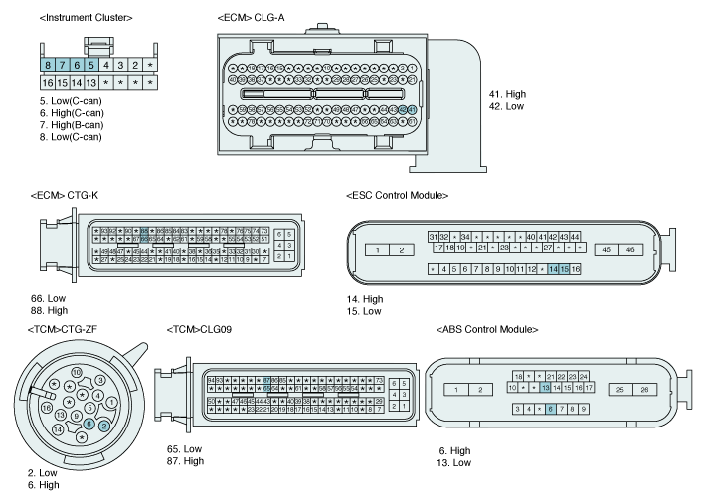

Fig 3: Identifying Control Module Connectors & Terminals (2 Of 2)
G06365619Courtesy of KIA MOTORS AMERICA, INC.
