Schematic Diagram

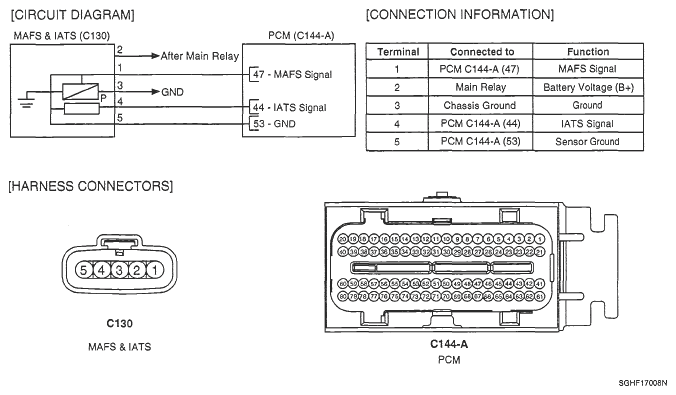

Fig 1: Intake Air Temperature Sensor Circuit Short - Intermittent High Input - Schematic Diagram

G05301654

Courtesy of KIA MOTORS AMERICA, INC.
