Ground Circuit Inspection

  1. IG "OFF" and disconnect TPS connector.
  2. IG "ON" and ENG "OFF"
  3. Measure voltage between terminal 4 of TPS harness connector and chassis ground.
  4. Measure voltage between terminals 4 and 8 of TPS harness connector.

    Specification : Voltage difference between measurement "A" and "B" is below 200mV.

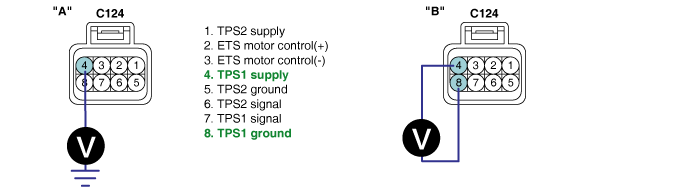

    Fig 1: Measuring Voltage Between Terminals 4 And 8 Of TPS Harness Connector
    G00489819Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the measured voltage within specification?

    YES

    NO
