Signal Circuit Inspection

Check voltage
1. IG "OFF" and disconnect ECTS connector.
2. IG "ON" and ENG "OFF"
3. Measure voltage between terminal 3 of ECTS harness connector and chassis ground.
  Specification : Approx. 5V

  Fig 1: Measuring Voltage Between Terminal 3 Of 7Ects Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification ?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Go to 2"Check short to ground in harness" as follows.
Check short to ground in harness
1. IG "OFF" and disconnect ECTS connector and PCM connector.
2. Measure resistance between terminal 3 of ECTS harness connector and chassis ground.
3. Measure resistance between terminals 1 and 3 of ECTS harness connector.
  Specification : Infinite

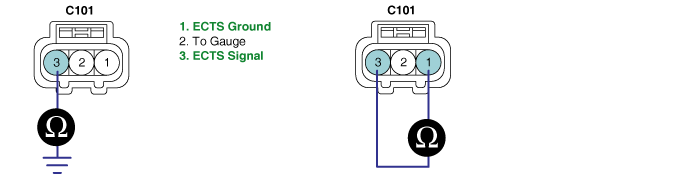

  Fig 2: Measuring Resistance Between Terminals 1 And 3 Of ECTS Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair short to ground in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
