Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Esp (Electronic Stability Program)
>>
Schematic Diagram
>>
ESC Control Unit (HECU)
>>
HECU Control Unit (ESC) Circuit Diagram
HECU Control Unit (ESC) Circuit Diagram

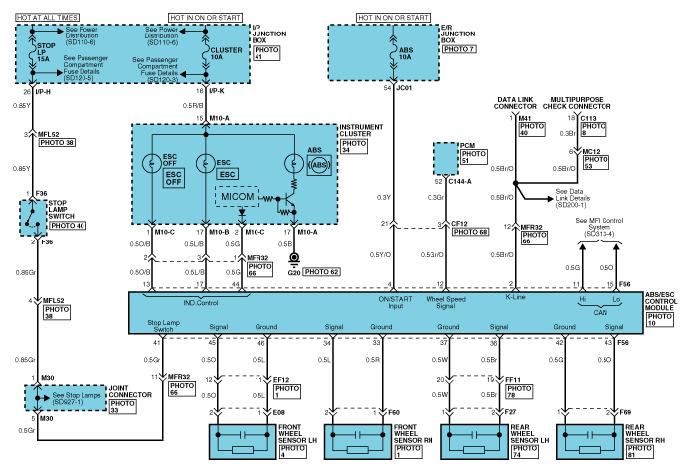

Fig 1: HECU Control Unit (ESC) Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

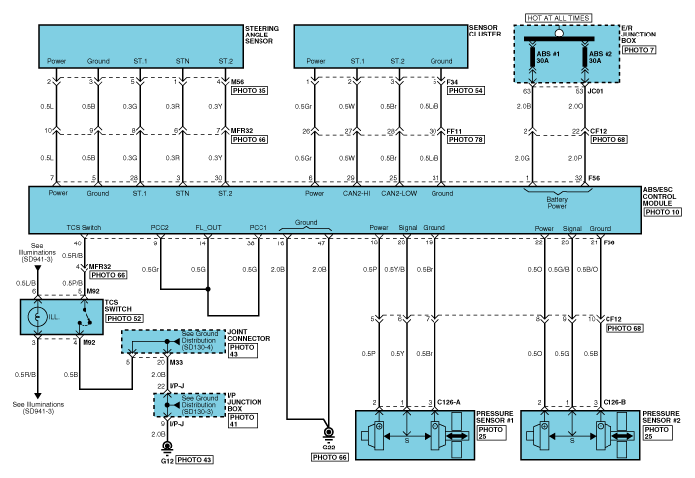

Fig 2: HECU Control Unit (ESC) Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
