HECU Control Unit (ESC) Circuit Diagram

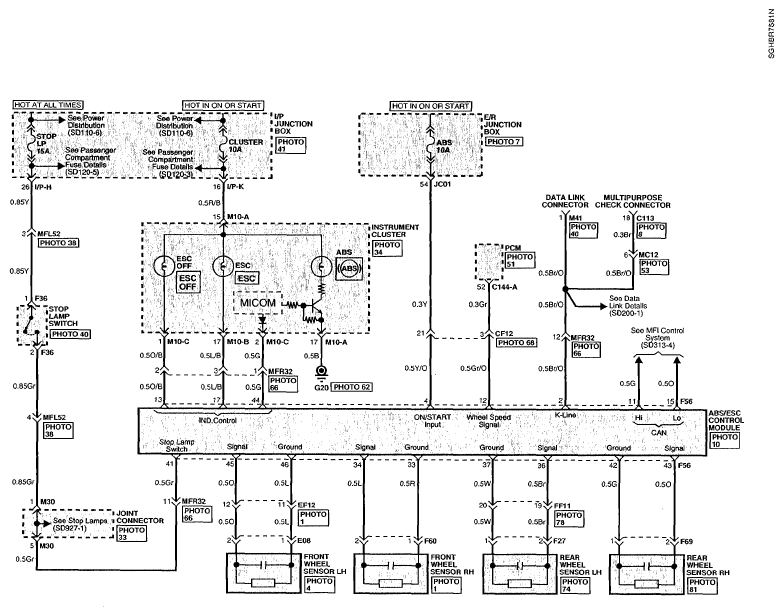

Fig 1: HECU Control Unit Circuit Diagram (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

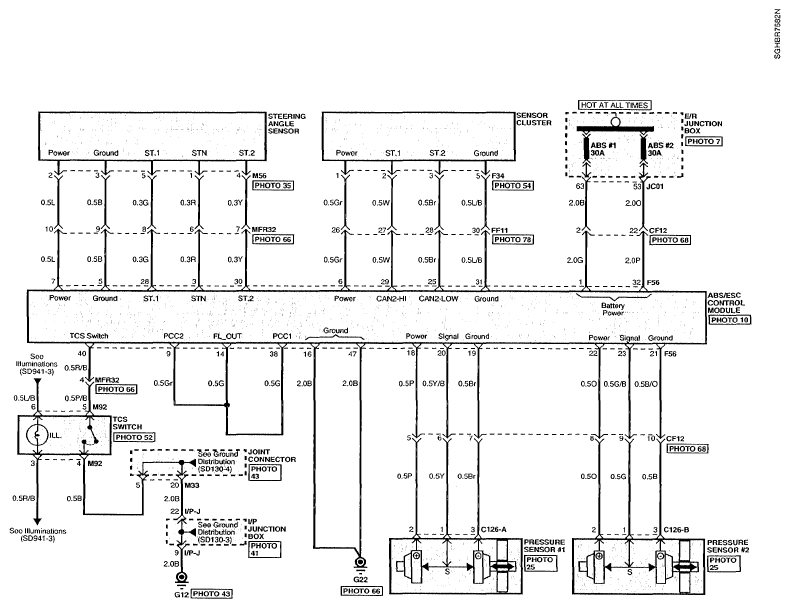

Fig 2: HECU Control Unit Circuit Diagram (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
