Abs/TCS Circuit Diagram

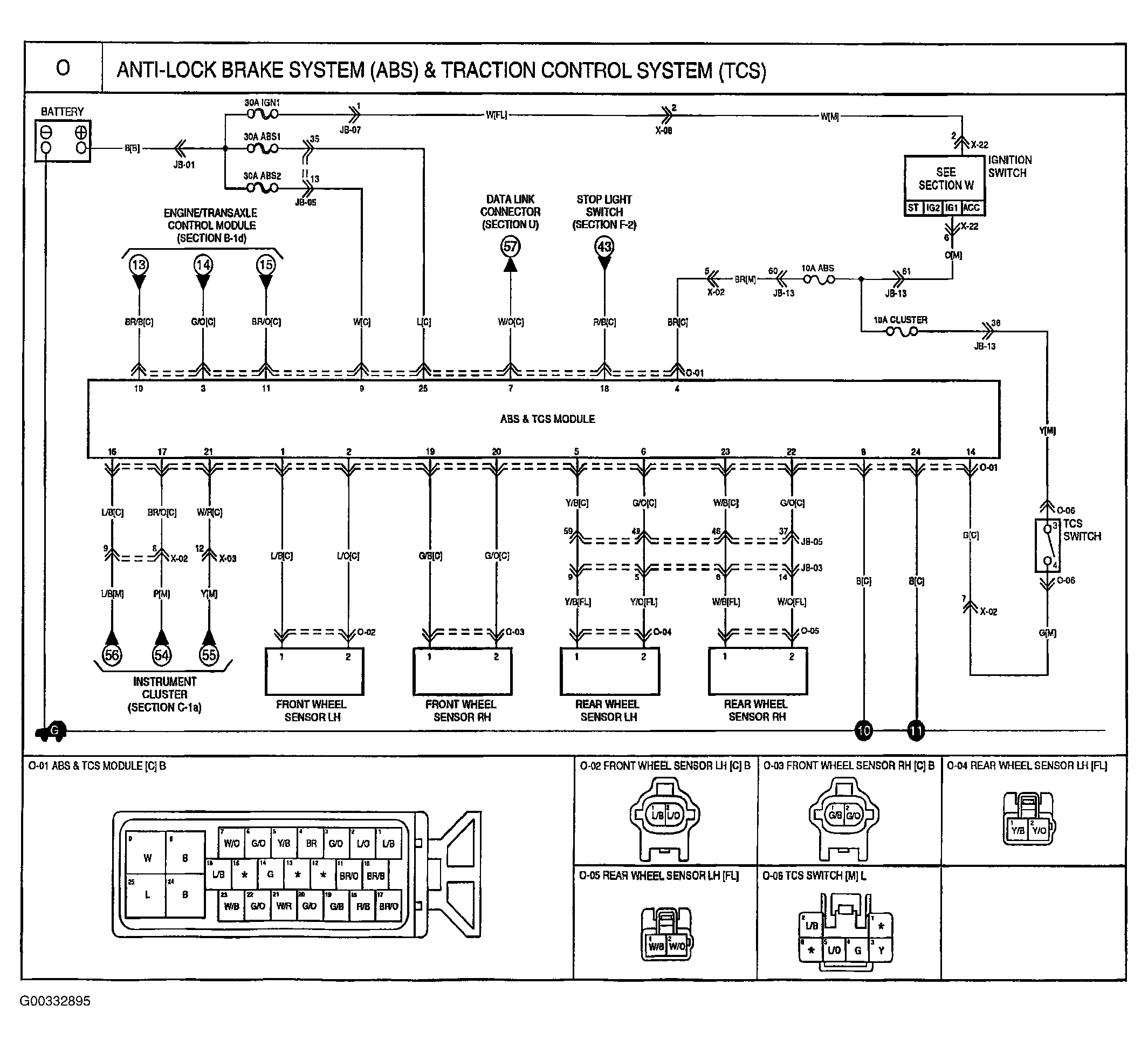

Fig 1: System Circuit Diagram

G00332895

Courtesy of KIA MOTORS AMERICA, INC.
