Audio Unit (AM/FM/CDP - M445) Connector End View

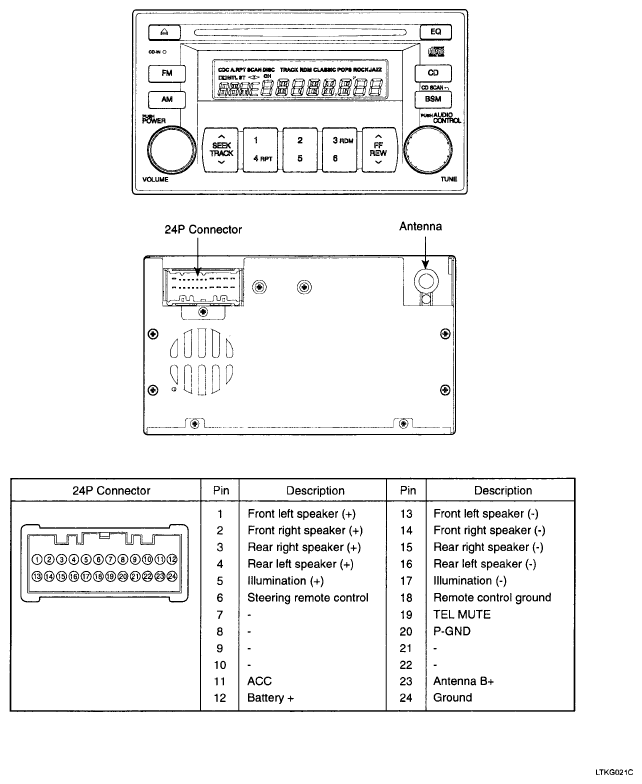

Fig 1: Audio Unit (AM/FM/CDP - M445) Connector End View

G04884483

Courtesy of KIA MOTORS AMERICA, INC.
