Signal Waveform And Data

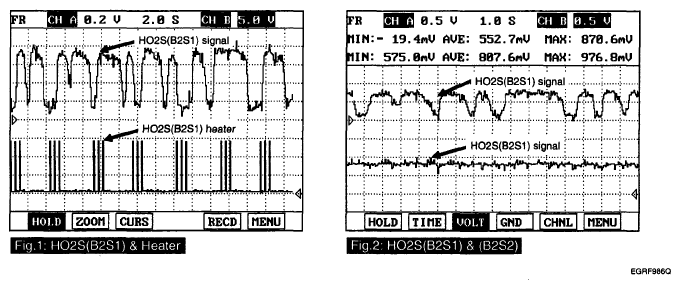

Fig 1: Signal Waveform Graph

Courtesy of KIA MOTORS AMERICA, INC.

After warming-up, if accelerator pedal is released suddenly around 4000 RPM, the HO2S signal reading will be lower than 200mV resulting from Fuel cut-off for the moment. Conversely, if suddenly accelerator pedal is depressed, HO2S signal reading will be around 0.6V-1.0V. At idle, HO2S signal will switch from lean to rich normally.
