Home >> Kia >> 2008 >> Sedona Base >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) >> DTC P0461 Fuel Level Sensor "A" Circuit Range/Performance >> Schematic Diagram

Schematic Diagram

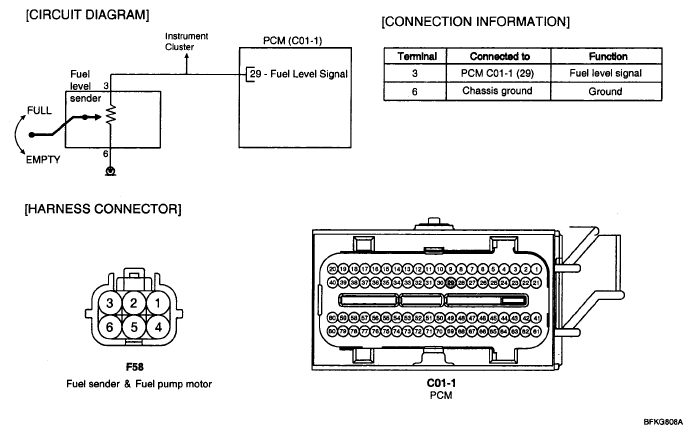

Fig 1: Schematic Diagram - Fuel Level Sensor Circuit

G04883487

Courtesy of KIA MOTORS AMERICA, INC.
