Actuation Test

  1. Connect scan tool on the DLC ( Data Link Connector).
  2. Perform Actuation Test for Canister Vent Solenoid Valve with scan tool.
  3. Check that clicking sound can be heard by actuation test.

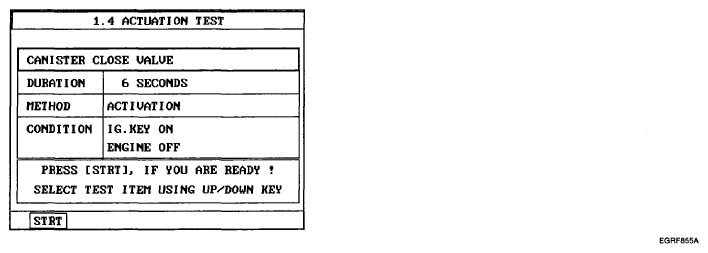

    Fig 1: Scan Tool Display Screen - Actuation Test
    G04883472Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the CCV normal ?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
