Component Inspection

Visual Inspection of HO2S
1. Visually/physically inspect following items:
  - Inspect the front HO2S for Contaminated, deteriorated or aged Front HO2S
  - If contamination is evident on the HO2S, replace contaminated sensor
2. Is the HO2S visually/physically OK?
  YES
  - Go to step 2.
  NO
  - Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Check performance of HO2S

Connect scan tool & Engine "ON"
Warm-up the engine to normal engine temperature.

Monitor signal waveform of HO2S with scan tool.

SPECIFICATION: RESPONSE TIMES:

HO2S SPECIFICATION

HO2S	Response Time (70% Duty at 10Hz)
	lean to rich (Less than 65ms) rich to lean (Less than 80ms)

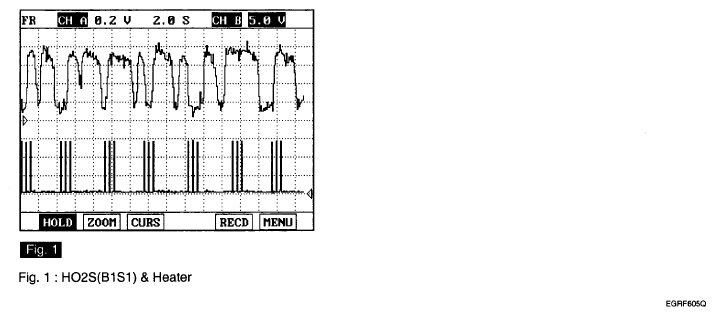

Fig 1: Signal Waveform Graph

Courtesy of KIA MOTORS AMERICA, INC.

Is the sensor signal switching properly?
YES
- Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NOTE: There is a memory reset function on scan tool that can erase optional parts automatically detected and memorized by PCM. Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others
