Standard Flow Of Diagnostic Troubleshooting

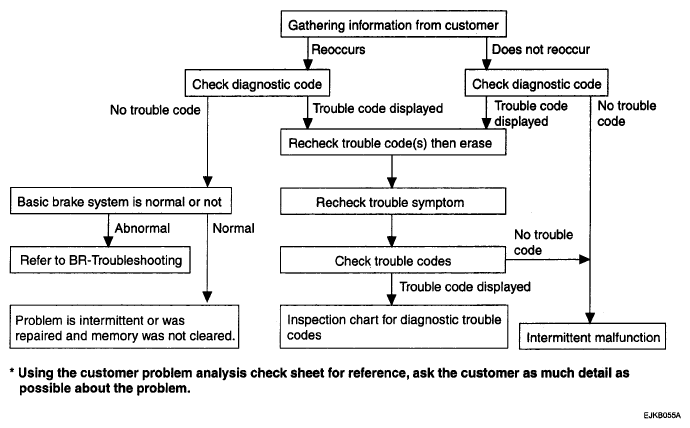

Fig 1: Diagnostic Troubleshooting Flow Chart

G04863253

Courtesy of KIA MOTORS AMERICA, INC.
